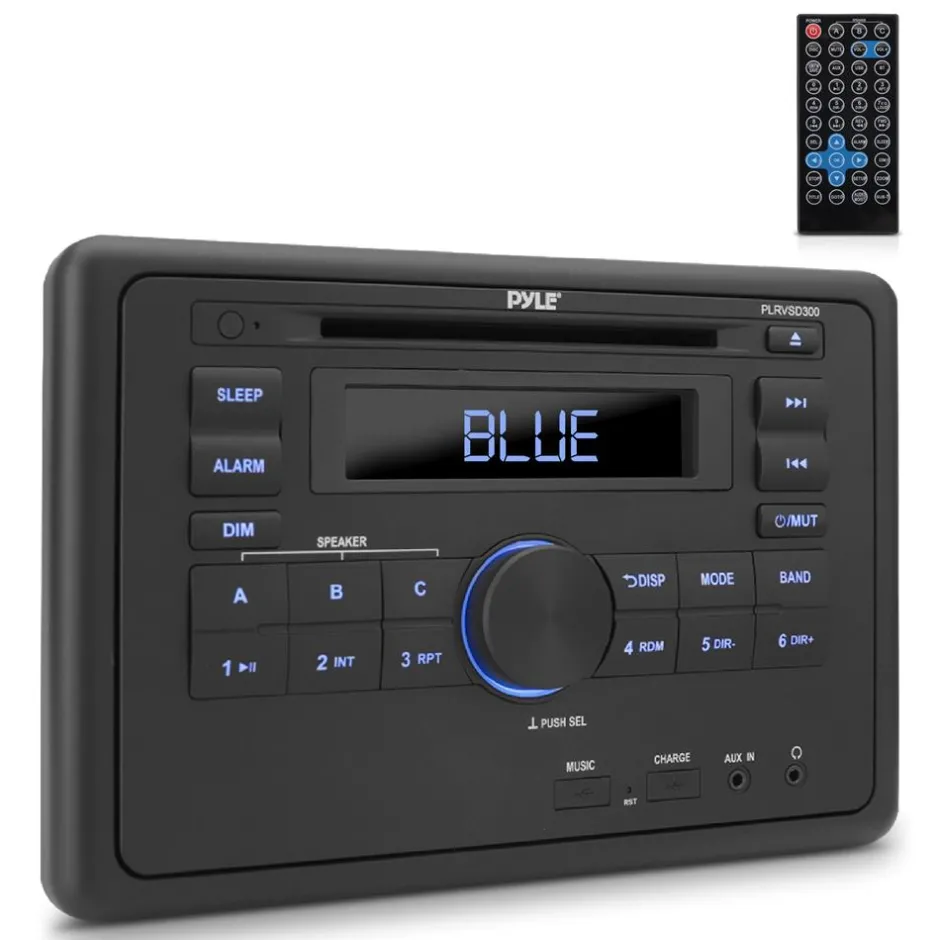

Digital Mobile Receiver System<Pyle Best

Features:

• Audio +Video Digital Mobile Receiver System
• Built-in Bluetooth Wireless Receiver for Music Streaming
• Universal Standard 1 DIN Size
• Multi-Speaker 3 Zone Audio Source Control
• Digital LCD Display with AM/FM Radio
• Front Loading CD/DVD Player
• Versatile Digital Media File Support
• Connect & Stream Audio from External Devices
• AUX 3.5mm Input Jack
• RCA /L/R Output
• RCA L/R Input
• HDMI Connector ARC
• RCA Video Input / Output
• USB Flash Drive Reader

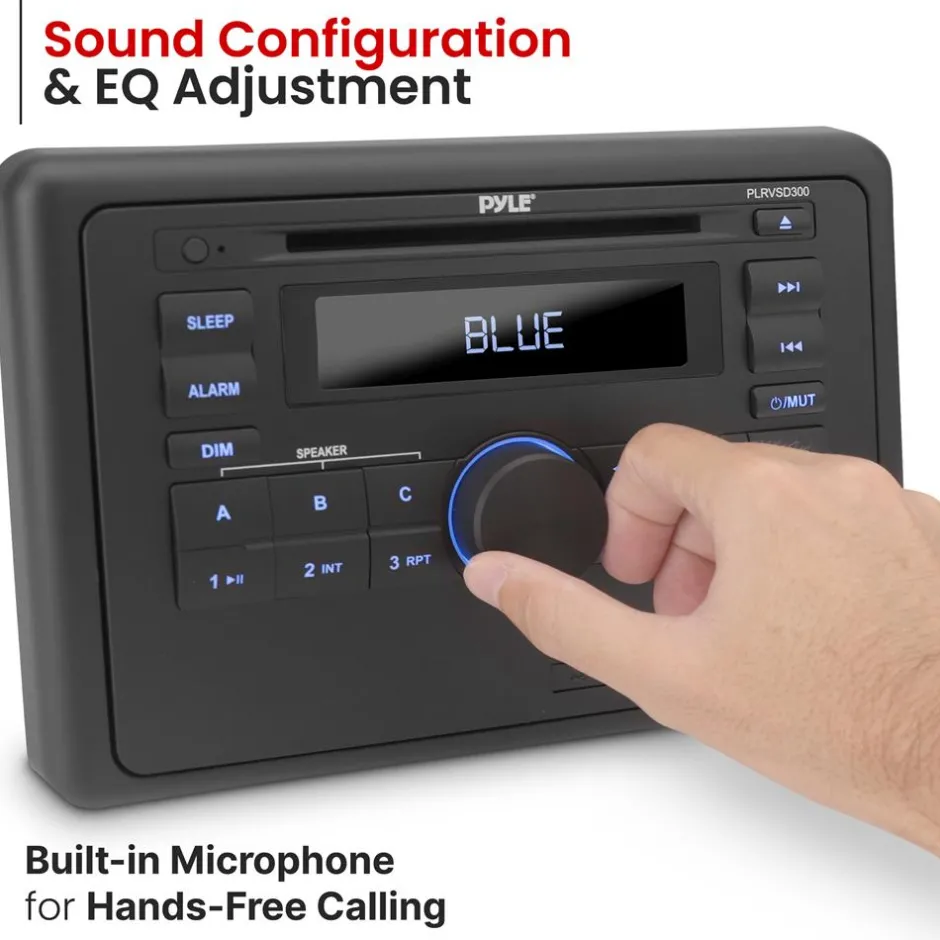

• Sound Configuration & EQ Adjustment

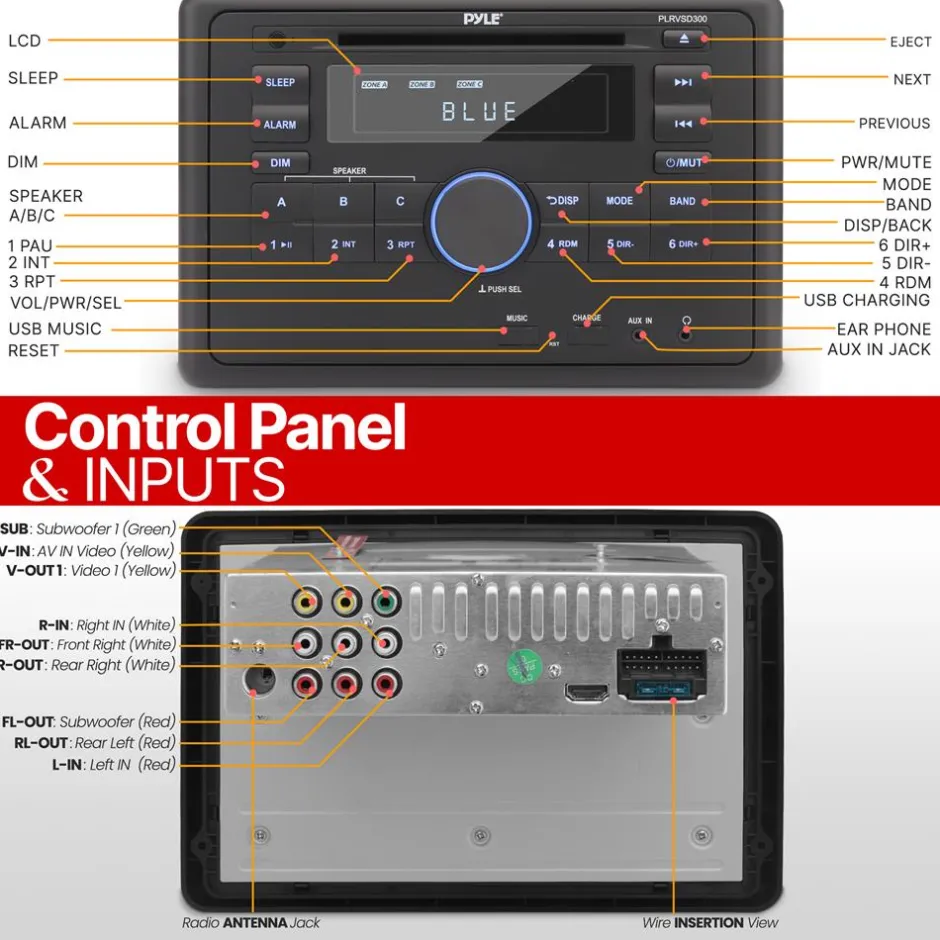

• Front Panel Button Control Center
• Integrated Alarm Clock
• Headphone Jack 3.5mm
• Used for RV, Travel Trailers Motor Homes, Campers & More

Wireless BT Connectivity:

• Built-in Wireless BT for Wireless Music Streaming
• Hands-Free Calling Ability with Built-in Microphone
• Compatible with All of Your Favorite Wireless BT Devices
• (iPhone, Androids, Smartphones, iPad, Tablets, etc.)
• Convenient Contact List Import Ability
• Digital Phone Dial Pad Display
• Wireless BT Version: 4.1
• Wireless BT Network Name: ‘PyleUSA’
• Wireless BT Network Password: ‘0000’
• Wireless Range: 15’ ft.

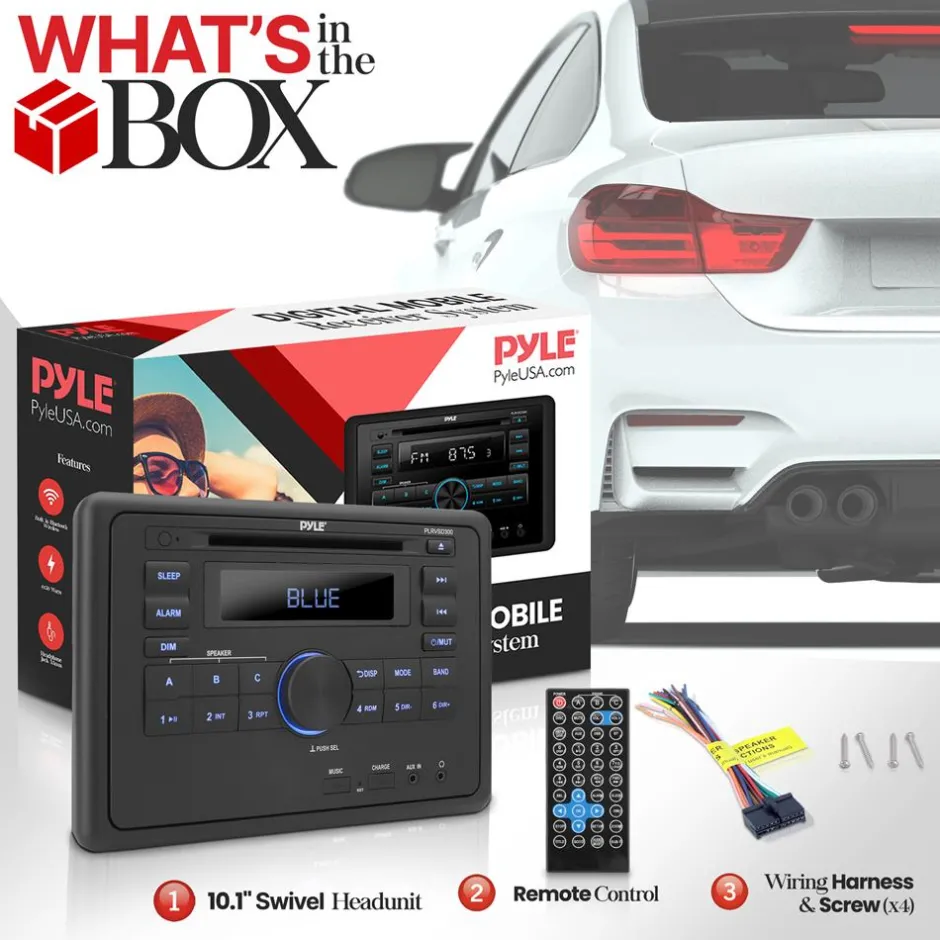

What’s in the Box:

• A/V Receiver System
• Harness
• Remote Control
• User Manual
• Screw x 4

Technical Specs:

• MAX Power output : 4x50watt
• Universal Standard 1 DIN size
• Sound Mode : Stereo /Mono
• Frequency Response : 40Hz-18kHz( +/-3dB)
• Impedance : 4 Ohm
• S/N Ratio 60dB
• Stereo Separation : 50dB,@1kHz
• Tone Control : Bass /Treble+/-10dB
• PLL Synthesizer Stereo Radio
• Electronic Shockproof (ESP ) Function
• Maximum USB Flash Support : 32GB
• Radio Station Memory : Up to 30 Presets
• Digital Audio File Support : MP3,WMA
• Digital Video File Support : MP4.AVI,MOV,MPG,FLV,XVID
• CD/DVD Disc Compatibility Support : CD-R,CD-RW,VCD,DVD,MP3-CD
• Power : DC 12V
• Current Drain /Power Consumption : 10 AMP (MAX )

MANUALS & DOWNLOADS

PLRVSD300 – Manuals
