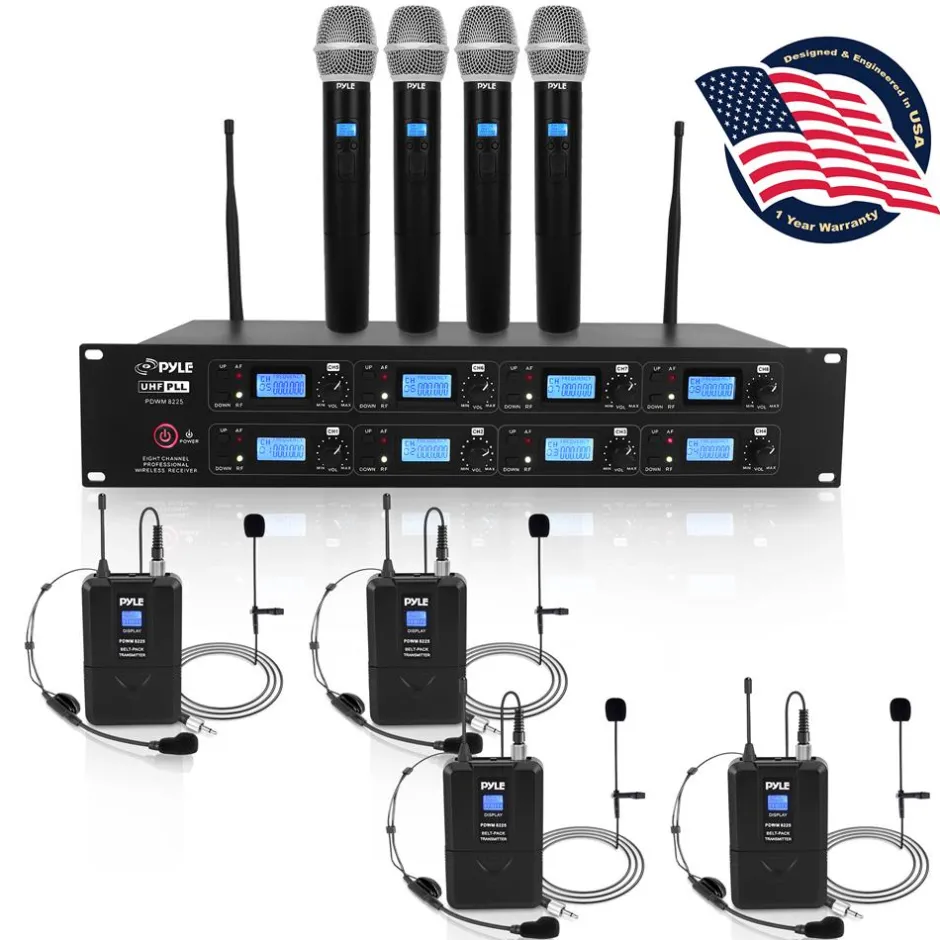

8-Channel UHF Wireless Mic System, 164 ft Range, Digital Display<Pyle New

The Pyle 8-Channel Wireless Microphone Systems provide wide area coverage ranges with simple controls and hassle-free operation. Wireless UHF signal audio transmission allows for distortion free and crisp vocal audio performance for all of your microphone needs. System base receiver features independent adjustable channel volume controls, digital LCD displays with frequency read-out, along with LED audio signal indicators. Additional system features include (8) XLR balanced output jacks, (2) 1/4’’ mixed output connectors and integrated mounting brackets for rack mount compatibility. Enjoy easy-to-use and crisp audio performance with the Pyle 8-Channel Wireless Microphone Systems.

System Features:

• Wireless Audio Control for up to (4) Microphones & (4) Transmitters
• UHF System for Wide Area Signal Range Coverage
• Simple & Hassle-Free Operation
• Independent & Adjustable Channel Volume Controls
• Digital LCD Display with Channel & Frequency Readout
• Wireless Operation Range: Up to 164 ft.
• LED Audio Signal Indicator Lights
• RF (Radio Frequency) & AF (Audio Frequency)
• (8) XLR Balanced Output Jacks

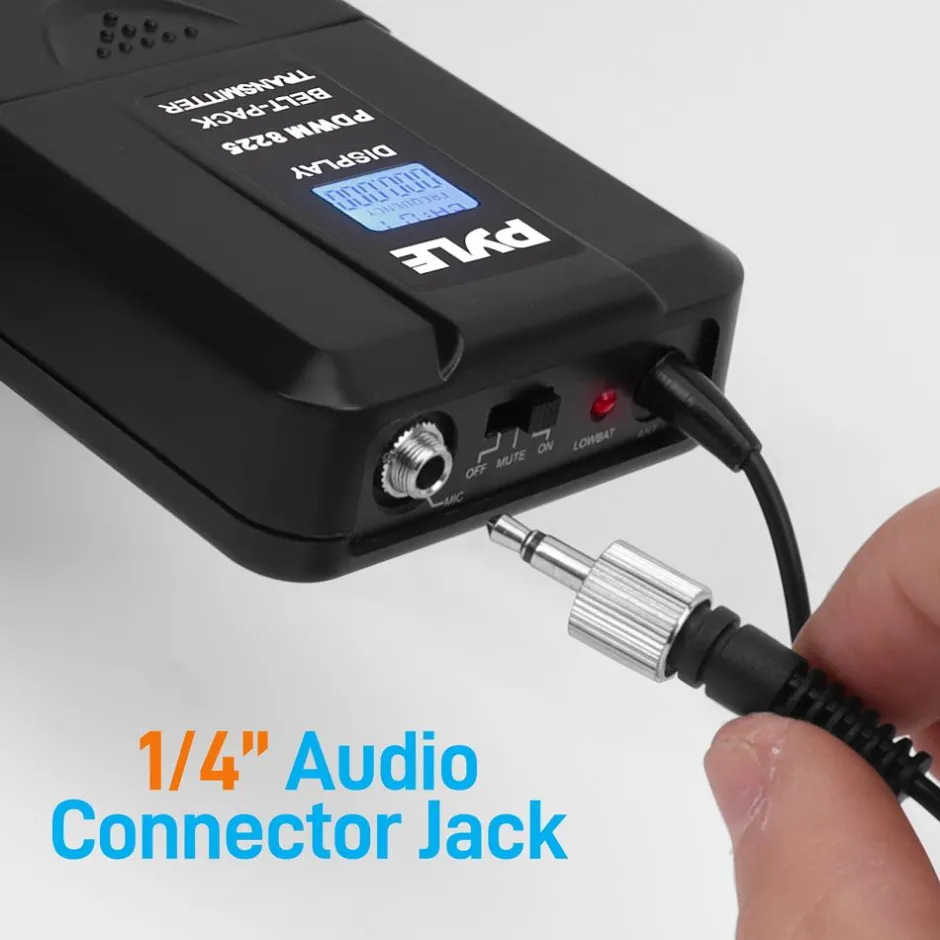

• (2) 1/4’’ Mixed Outputs
• Rack Mountable

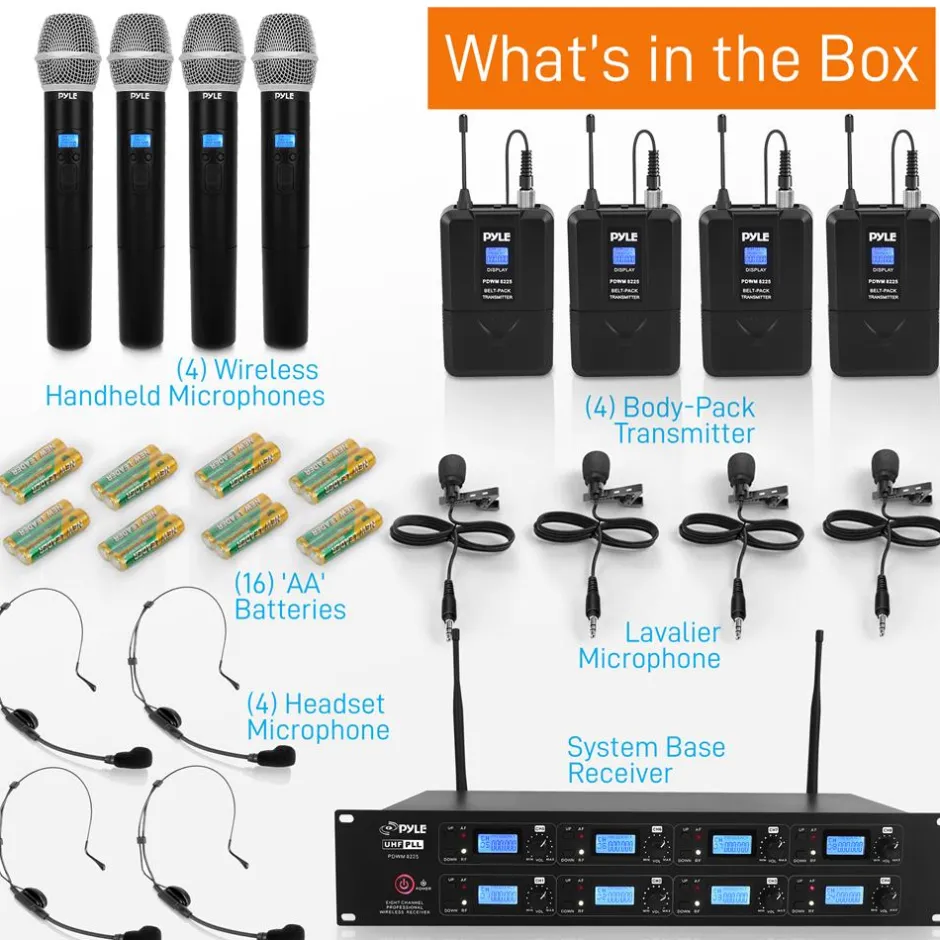

What’s in the Box:

• System Receiver
• (4) Wireless Handheld Microphones
• (4) Belt-Pack Transmitters
• (4) Headset Microphones
• (4) Lavalier Microphones
• (2) Detachable Antennas
• (2) 1/4″ Audio Cable
• (16) 1.5V x ‘AA’ Batteries
• Power Adapter

Receiver Specifications:

• Digital LCD Display Channel Readout
• Image & Spurious Rejection: >70 dB
• Receiving Sensitivity: -105 dB

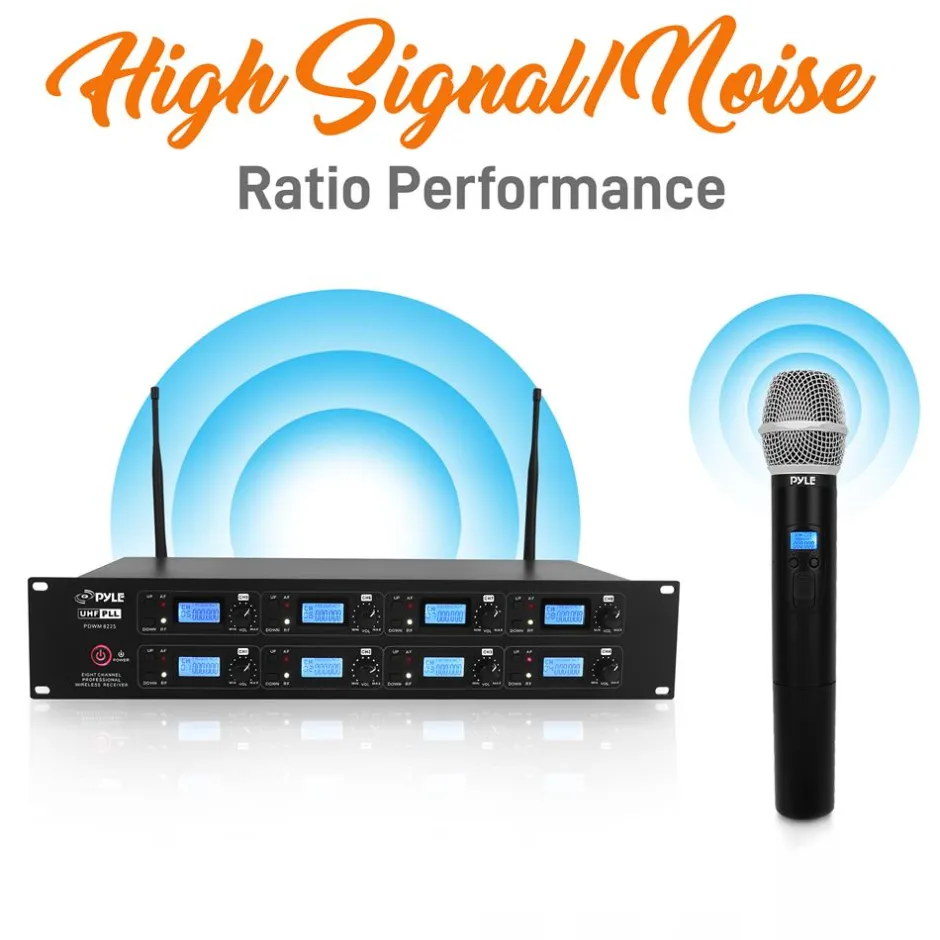

• Signal / Noise Ratio: -105dB
• Border Upon Channel Rejection: > 70 dB
• Audio Output Level: 0-300 mV
• Power Requirements: 13-15V DC nominal 1500 mA
• T.H.D.: < 1%
• ON/OFF Switch
• Power Supply: 110/220V (13-15V Power Adapter)
• Receiver Dimensions (L x W x H): 18.9” x 7.8” x 3.9”

Handheld Mic / Body-Pack Transmitter Specifications:

• Includes (4) Microphones & (4) Bodypacks
• Digital LCD Display Channel Readout
• RF Output: >10 dBm
• Modulation Type: FM
• Max Deviation: ± 40 kHz
• Spurious Emission: > 55 dBc
• Nominal Current Drain: < 100mA
• ON/OFF/MUTE Switch

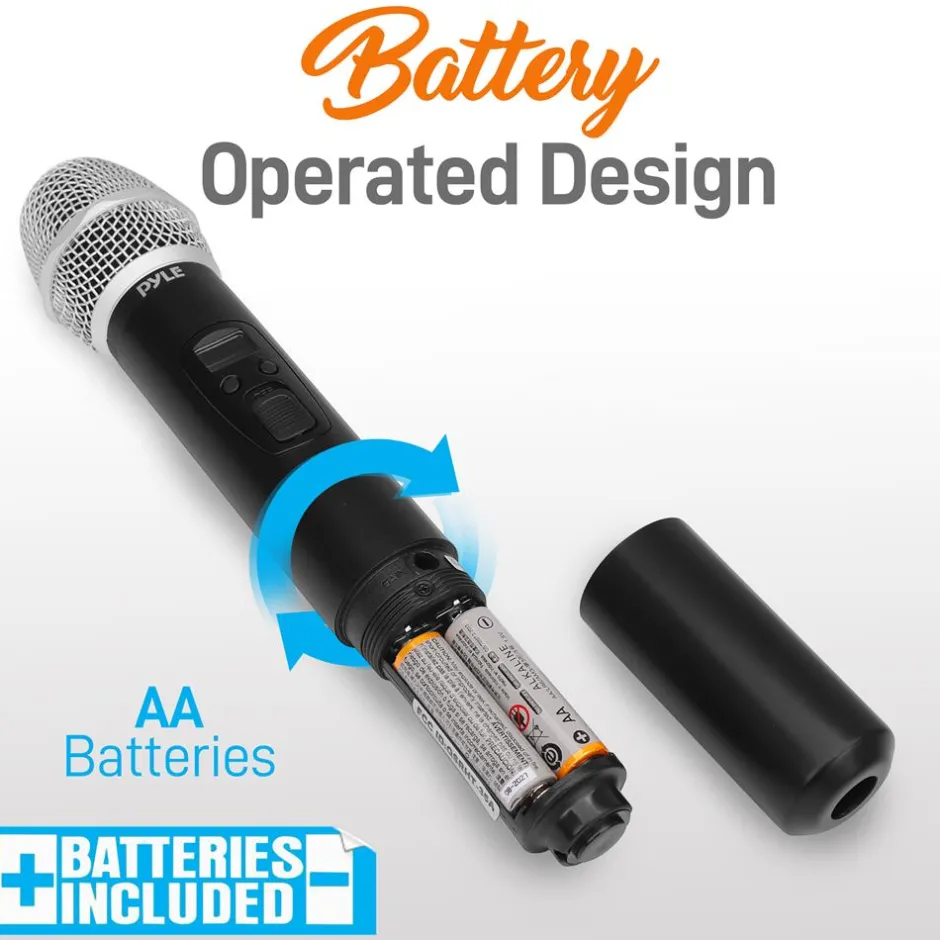

• Battery Operated, Requires (2) x ‘AA’ Batteries
• Mic Dimensions (L x W x H): 9.8” x 2.0” x 2.0”
• Body-Pack Dimensions (L x W x H): 4.1” x 2.5” x 1.2”

System Receiver

(4) Wireless Handheld Microphones

(4) Belt-Pack Transmitters

(4) Headset Microphones

(4) Lavalier Microphones

(2) Detachable Antennas

(2) 1/4″ Audio Cable

(16) ‘AA’ Batteries

Power Adapter
