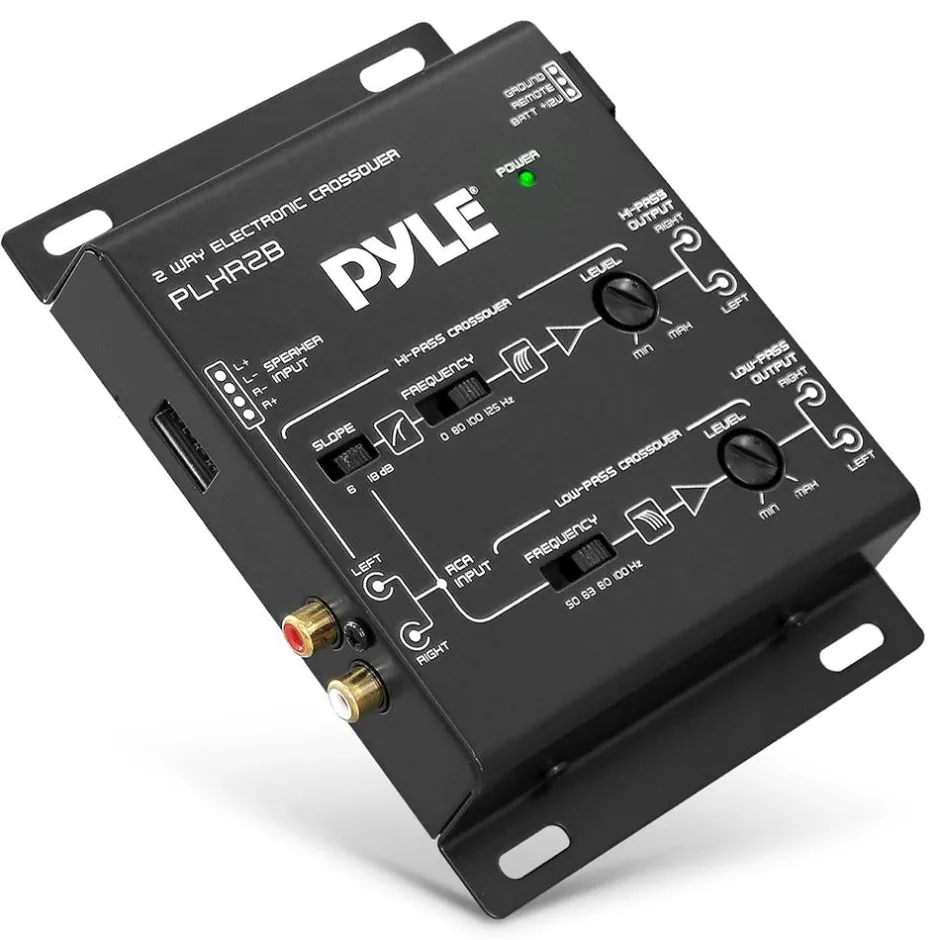

2-Way Audio Crossover Network – Enhanced Sound – Independent Output Control<Pyle Discount

Features:

• 2-Way Electronic Crossover
• Compact Size
• High/Low Impedance Input

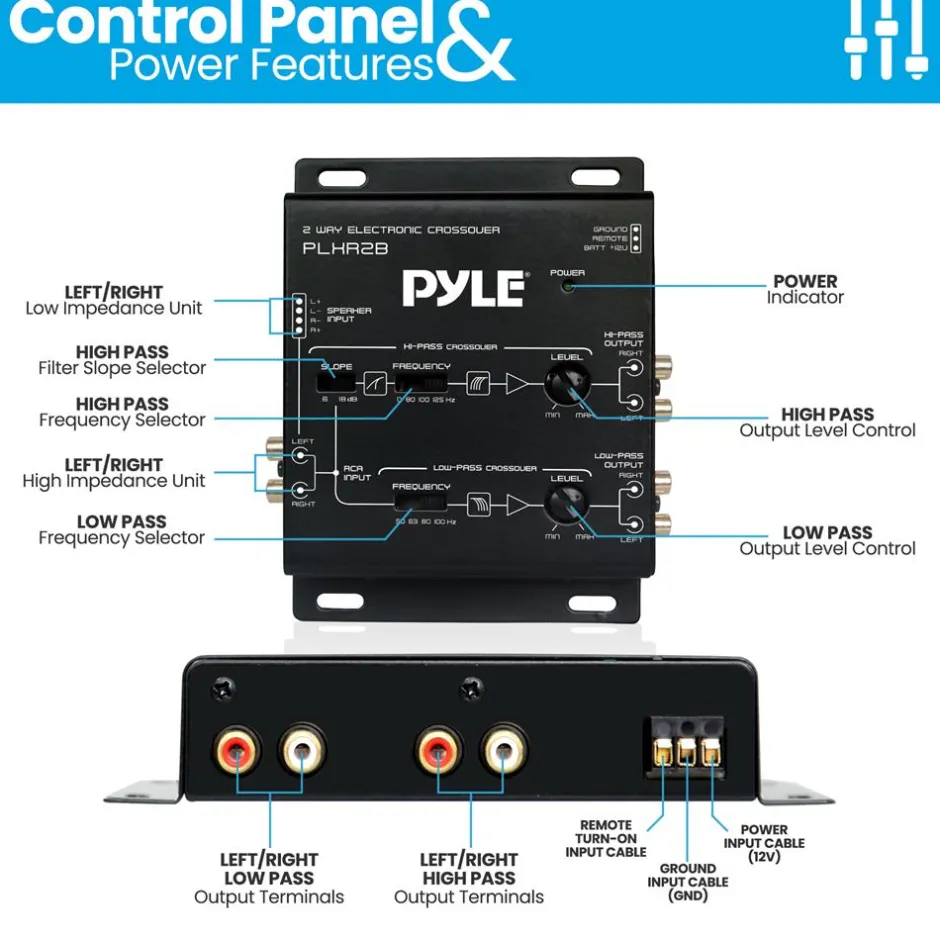

• Independent High-Pass/Low-Pass Output Level Controls
• Special and Better Crossover Slope Design
• 4-Channel RCA Outputs
• 2 Channel RCA Inputs
• Power on LED Indicator

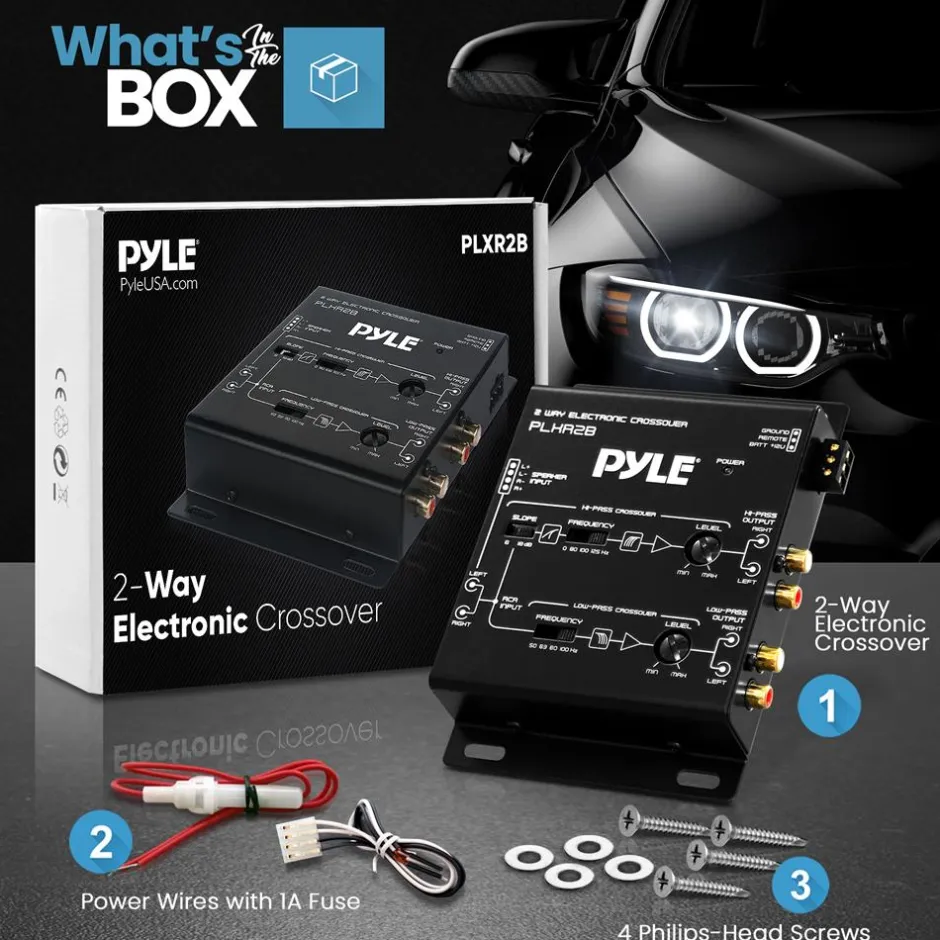

What’s in the Box:

• 2-Way Electronic Crossover
• Power Red Wire with 1A Fuse
• 4 Phillips-head Screws

Technical Specs:

• Hi-Pass Crossover: Full, 80, 100, 120 Hz
• Low-Pass Crossover: 50, 63, 80, 100 Hz
• Low Pass: 18dB/oct (3rd order Butterworth)
• High Pass: 6dB or 18dB/oct (3rd order Butterworth)
• Distortion: 0.05% THD at 1V output level
• S/N Ratio: 110dB
• Output Volt: 6V Max
• Separation: >60dB
• Frequency Response: 10 HZ~ 50 KHZ
• Voltage: 11V-15V

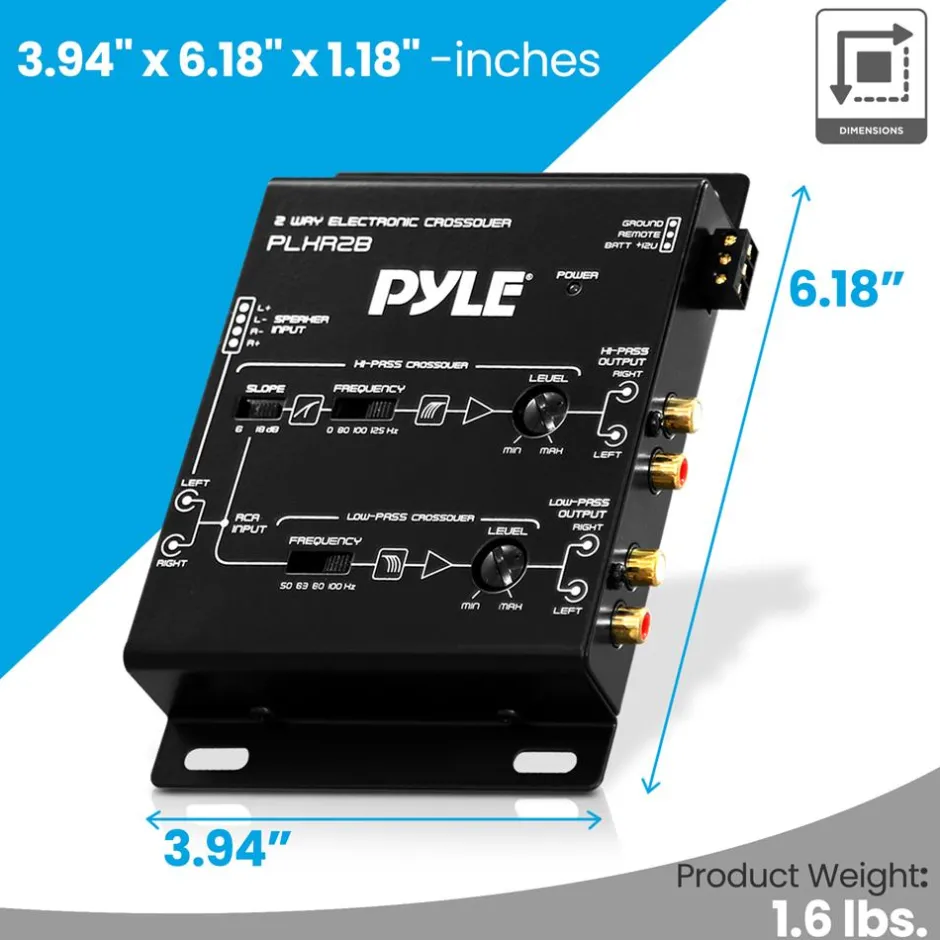

• Product Dimensions (L x W x H): 3.94” x 6.18” x 1.18” -inches
